Incorporates 3” of stretch and 5” of ground clearance
Designed to use your XS650’s stock wheel, tire, spacers, and chain adjusters
Constructed of 1 1/8” diameter steel tubing with .120” wall thickness
The axle plates are cut from 3/8” thick steel and have an integrated mount holes
The lower rails have solid steel slugs welded into them that fit into the stock frame tubes for strength and easy assembly
Mounting instructions are included with every kit
CNC Mandrel Bent American Made Steel Tubing
WELD-ON HARD TAIL HONDA CB750
The unique design bolts to your stock swingarm mounting location for additional strength and ease of installation
It is designed to use your stock front frame section (uses your stock title/registration)
Incorporates 6” of stretch and 5” of ground clearance
Designed to use your CB750K’s stock wheel, tire, and chain adjusters
Spacer washers are included to allow use of your stock axle
It is constructed of 1 1/8” diameter steel tubing with .120” wall thickness
The axle plates are cut from 3/8” thick steel and have an integrated mount
Detailed mounting instructions are included.

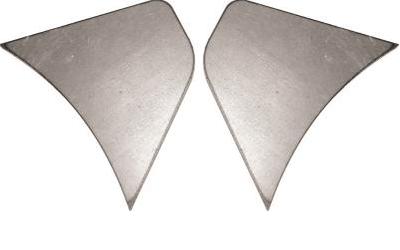

WELD-ON NECK GUSSETS
Get rid of your stock gussets and clean up your neck area of your frame with TC Bros
Yamaha XS650 neck gusset weldments
Made from 3/16” mild steel for easy welding
Fits all years of the Yamaha XS650 frames (70-82)
AXLE PLATES

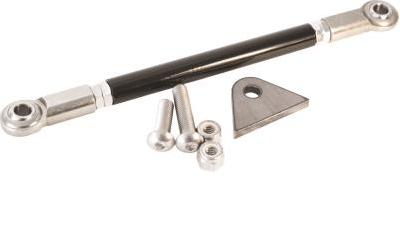

This brake anchor rod is designed specifically for the Yamaha XS650 but will work with many other models.
Kit includes: brake anchor rod, mild steel weld on tab, spherical rod ends, 3/8” stainless button head bolts and nylock nuts.
REAR DRUM BRAKE ANCHOR ROD
Box is made from 16ga steel and is in raw finish
Mounting straps are included and ready for you to bolt or weld on
Battery box fits a stock XS650 battery (12N14 type as used on 1974-1983 models) perfectly with the stock rubber boot (weather stripping can be used if you do not have a boot)
