Both XGen and XTrack are 4-season models
Worlds largest flotation 2680 sq. in. (1.73 square meter)
Units can be transferred from one model to another with appropriate mounting hardware
Profile of the rubber track is 1-1/4 (32mm)
All parts are Canadian made and the rubber tracks are made in the USA
Fixation plate on the unit reinforces the A-Arms. The installation of the fixation plate (1/4 thick) sandwiches the A-Arm and helps protect it from damage
Hubs have 3 sealed bearings
The track has a flat design which allows water, mud and sand to be cleared out of the rubber track
Options can be added on both models:
Studs can be added for icy surfaces
Double wheels can be added for heavier loads
Wide-Track system, for more flotation 2960 sq. in. (1.9 square meter)

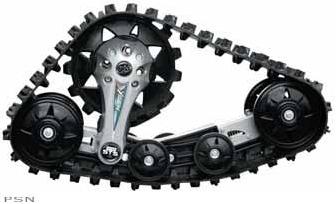

TJD XGen TRACK SYSTEM

Suspension track system is patented and offers an integrated torsion suspension call STS-4 which absorbs all vibration
Use of larger wheels with a double bearing system offers a smoother ride
Self adjusting automatic track tension system in both front and the rear tracks provides good track tension at all times
High density UHMW pressure molded plastic frame reinforced with aluminum. Components are die-cast aluminum reinforced with zinc plated steel sleeves and are an integrated torsion suspension system
Excellent stability and 5 more ground clearance than with the wheels
Offers the best ratio between traction and drivability on the market
Made for snow, mud, sand and hard terrain
1-year manufacturers warranty against all manufacturers defects
Wheel Adapter and Mounting Hardware Kits allow Universal Track Kit to be interchanged from one ATV to another
The large wheels have a bearing on each side for stronger/longer life
Tension on tracks is easy to adjust
Speed reduction 10% to 20% (800cc to 400cc)
For replacement part information and the latest application updates visit www.tjdusa.com

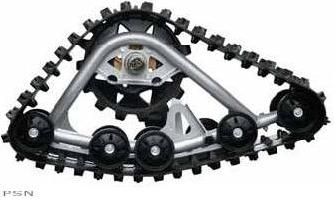

TJD XTrack TRACK SYSTEM

More ground clearance, 5 higher than the wheels
All metal trail arm fasteners are made of heavy-duty steel and are zinc plated to prevent rusting. The wheel suspension trail arm fasteners are reinforced with 2 steel plates which fully cover the unit and double the strength
Track system runs on a sprocket wheel developed by TJD which eliminates all vibrations and are 5000 lb. pressure resistant
Super heavy-duty steel tubing (up to 125mm thick) provides a new frame design to improve the ATVs handling and maneuverability
Manufactured for deep snow, mud swamps, sand and hard ground
Tension on tracks is easy to adjust
Wheel Adapter and Mounting Hardware Kits allow Universal Track Kit to be interchanged from one ATV to another
1-year manufacturers warranty against all manufacturers defects
For replacement part information and the latest application updates visit www.tjdusa.com

CYCLE COUNTRY PLOW BLADE MOUNT KIT - TJD

When using TJD tracks with a Cycle Country Plow Blade System, it is necessary to order an additional part number 56-6937 because the mounting location on the quad is often the same for the track system and plow blade mount kit. This mount kit accepts both the Cycle Country plow and the TJD track kit.

Tjd® track systems

№ каталог

Описание

Цена

559517

X-Track® Track -98” Front Hub Electric for Polaris Units


Номер в каталоге: 559517
Описание: X-Track® Track -98” Front Hub Electric for Polaris Units
Цена: 0.00р.
В корзину шт.

559518

X-Track® Super Heavy-Duty Wide -121” for Polaris Units


Номер в каталоге: 559518
Описание: X-Track® Super Heavy-Duty Wide -121” for Polaris Units
Цена: 0.00р.
В корзину шт.

559519

X-Track® Super Heavy-Duty 98” for Polaris Units


Номер в каталоге: 559519
Описание: X-Track® Super Heavy-Duty 98” for Polaris Units
Цена: 0.00р.
В корзину шт.

559520

X-Track® Track -98” for Polaris Units


Номер в каталоге: 559520
Описание: X-Track® Track -98” for Polaris Units
Цена: 0.00р.
В корзину шт.

559521

X-Track® Wide Track -121” for Polaris Units


Номер в каталоге: 559521
Описание: X-Track® Wide Track -121” for Polaris Units
Цена: 0.00р.
В корзину шт.

559522

XGen® Track - 98” for Polaris Units


Номер в каталоге: 559522
Описание: XGen® Track - 98” for Polaris Units
Цена: 0.00р.
В корзину шт.

559523

XGen® Wide Track - 121” for Polaris Units


Номер в каталоге: 559523
Описание: XGen® Wide Track - 121” for Polaris Units
Цена: 0.00р.
В корзину шт.

559524

XGen® Wide Track - 121”

559571

X-Track® Track -98”

559572

X-Track® Wide Track -121”

559699

XGen® Track - 98”

566937

Cycle Country™ Plow Blade Mount Kit - TJD®


Номер в каталоге: 566937
Описание: Cycle Country™ Plow Blade Mount Kit - TJD®
Цена: 0.00р.
В корзину шт.
