All you need is a mount, implement and lifting system. Universal mounting kit accepts all 3 implements. All implements are universal

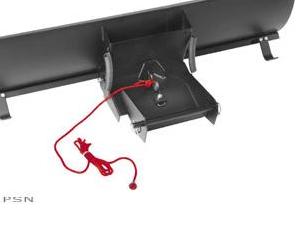

UNIVERSAL ATV MOUNT KIT
Fits most ATVs (trailer hitch required)
Innovative leaf spring design eliminates front end drop when implement is raised
Enables you to easily switch the plow, bucket and pallet lifter
ATV must have a rear hitch bracket
Distance from the center of the hole in the hitch bracket to the front of the front tires must be at least 61, but cannot exceed 73
Maximum length of the assembled accessory mount from the hitch point to the mounting hole in the yoke is 75. Minimum length is 63
Maximum distance between spring clevis brackets is 32, assuming 4 overlap of springs
Minimum recommended ATV = 300cc
We have fit tested this system on as many of the late model, major brand ATVs as possible. If the system does not fit your ATV, call us toll free at 1-800-222-8183

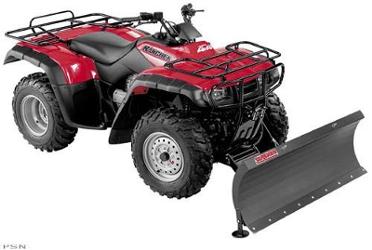

ATV UNIVERSAL SUPER DUTY 50" PLOW BLADE
Universal fitment
50 wide with 18 lift height
1/8 corrugated steel
Replaceable wear bar and adjustable skids
No tools required for installation
Winch or manual lift required
ATV UNIVERSAL MANUAL LIFT
Designed for use in place of winch-lifting mechanism for lifting plow blade only
ATV UNIVERSAL DUMP BUCKET
Universal fitment
46 wide with an 18 lift height
Quick-release dump engagement
No-tool installation
Winch required, 250lb lift capacity
Optional teeth available
ATV UNIVERSAL PALLET LIFTER
Universal fitment
1.75" square forks, 250 lb. capacity
No-tool installation
Winch required
PLOW BLADE MARKERS
Red markers with all hardware included
Sold in pairs
Note: Nothing in this system will interchange with any other plow system.
Note: Contact dealer before ordering
Swisher quick switch implement system for atvs
Swisher quick switch implement system for atvs
№ каталог
Описание
Цена
559863
Quickswitch Blade Extension (50" to 60" Blade) -
--
Номер в каталоге:
559863
Описание:
Quickswitch Blade Extension (50" to 60" Blade) -
