Fuel control for each individual cylinder in a smaller enclosure
Warm up fuel adjustment (unit reads engine temp and allows fuel/timing adjustments based on the reading)
Reduced size from the PCIII USB
USB powered from computer; 9 volt adapter is no longer needed
Two position map switching function built in
Can add any SPST switch and toggle between two different fuel
Gear/speed input allows for map adjustment based on gear
Analog input allows user to install any 0-5 volt sensor
Build an adjustment table based on analog input such as boost or temperature
Power Commander V is capable of allowing each cylinder to be mapped individually and for each gear with the gear position input connected
More tuning ranges than PCIII USB
Enhanced accel pump utility
For Offroad and ATV, see appropriate catalog under Moose Power Commanders
Made in the U.S.A.

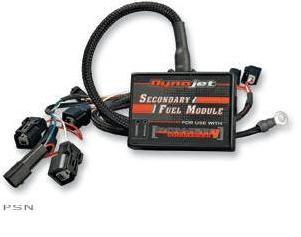

SECONDARY FUEL MODULE
Allows for the adjustment of all eight-injectors
Connects to the upper injector rail using OEM connectors
Single cable connection to the PCV
Adjust both upper and lower injectors by as much as +250/-100%
If gear position input is connected to your PCV, you can adjust all of the injectors on a per gear basis
You can also map each injector separately; giving you up to 48 complete maps
The basic mode allows you to have a single fuel table that simply puts the requested fuel change in both upper and lower injector modules at the same time
The basic mode is the perfect setting for modified engines that require more fuel than four-injectors can provide, but do not need the complexity of mapping each cylinder and each gear separately
Allows for the use of the Dynojet Quick Shifter sensor on eight-injector bikes which provides added fuel control and shifter functionality
See application chart for availability

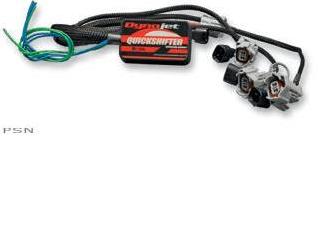

QUICK SHIFTER EXPANSION MODULE
The QEM allows the Dynojet Quick Shifter sensor to be used with Power Commander V on bikes that have eight injectors
The QEM connects to the upper injectors and then into the PCV
Once the sensor is attached you will have full Quick Shifter functionality
