Seastar solutions kicker cable tiebar

Miscellaneous steering & control accessories

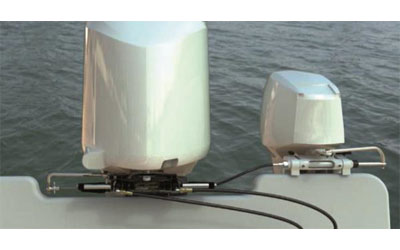

    This new Seastar product allows a user to manually steer an auxiliary engine (kicker motor) using their existing Seastar hydraulic steering system. Today this is accomplished with a variety of solid mechanical linkages between the main engine and the auxiliary engine. Teleflex has developed a patent pending design that incorporates a TFXtreme cable as the linkage between the two engines.
    • Flexible cable allows for adjustable locations of kicker motor
    • Allows independent trim/tilt of both engines
    • Allows full steering stroke of both engines
    • Simplified installation using universal ABYC steering connection (as per ABYC P17 & P21 standards) on kicker motor
    • Retrofittable to SeatStar Front Mount Cylinders
    • Incorporates unique patented cable technology
    • Cable Type: TFXtreme 40 Series
    • Max Engine Power: 20HP
    Note: Kicker Cable Tie Bar systems require a minimum clearance of 14" from the end of the tilt tube towards the motor side well or gunnel.

    Seastar solutions kicker cable tiebar Seastar solutions kicker cable tiebar
    Seastar solutions kicker cable tiebar

    Seastar solutions kicker cable tiebar


    Reference Chart

    Seastar solutions kicker cable tiebar
    № каталог Описание Цена
    709644 16 Inches Cable Length - --
    Номер в каталоге: 709644
    Описание: 16 Inches Cable Length -
    Цена: 0.00р.
    В корзину шт.
    709645 22 Inches Cable Length - --
    Номер в каталоге: 709645
    Описание: 22 Inches Cable Length -
    Цена: 0.00р.
    В корзину шт.
