Tucker Rocky ATV 2010

Swisher quick switch implement system for atvs

Swisher

    All you need is a mount, implement and lifting system. Universal mounting kit accepts all 3 implements. All implements are universal

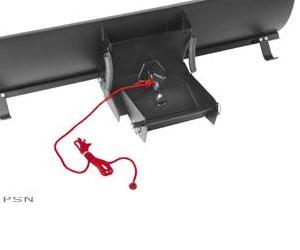

UNIVERSAL ATV MOUNT KIT

  • Fits most ATVs (trailer hitch required)
  • Innovative leaf spring design eliminates front end drop when implement is raised
  • Enables you to easily switch the plow, bucket and pallet lifter
  • ATV must have a rear hitch bracket
  • Distance from the center of the hole in the hitch bracket to the front of the front tires must be at least 61, but cannot exceed 73
  • Maximum length of the assembled accessory mount from the hitch point to the mounting hole in the yoke is 75. Minimum length is 63
  • Maximum distance between spring clevis brackets is 32, assuming 4 overlap of springs
  • Minimum recommended ATV = 300cc
  • We have fit tested this system on as many of the late model, major brand ATVs as possible. If the system does not fit your ATV, call us toll free at 1-800-222-8183

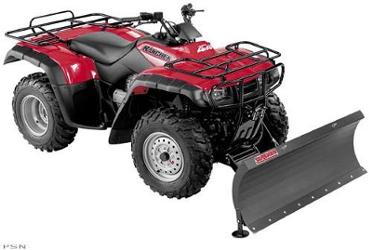

ATV UNIVERSAL SUPER DUTY 50" PLOW BLADE

  • Universal fitment
  • 50 wide with 18 lift height
  • 1/8 corrugated steel
  • Replaceable wear bar and adjustable skids
  • No tools required for installation
  • Winch or manual lift required

ATV UNIVERSAL MANUAL LIFT

  • Designed for use in place of winch-lifting mechanism for lifting plow blade only
ATV UNIVERSAL DUMP BUCKET
  • Universal fitment
  • 46 wide with an 18 lift height
  • Quick-release dump engagement
  • No-tool installation
  • Winch required, 250lb lift capacity
  • Optional teeth available
ATV UNIVERSAL PALLET LIFTER
  • Universal fitment
  • 1.75" square forks, 250 lb. capacity
  • No-tool installation
  • Winch required
PLOW BLADE MARKERS
  • Red markers with all hardware included
  • Sold in pairs

Note: Nothing in this system will interchange with any other plow system.

Note: Contact dealer before ordering

Swisher quick switch implement system for atvs Swisher quick switch implement system for atvs Swisher quick switch implement system for atvs Swisher quick switch implement system for atvs Swisher quick switch implement system for atvs
Swisher quick switch implement system for atvs

Swisher quick switch implement system for atvs

Swisher quick switch implement system for atvs
№ каталог Описание Цена
559863 Quickswitch Blade Extension (50" to 60" Blade) -  --
Номер в каталоге: 559863
Описание: Quickswitch Blade Extension (50" to 60" Blade) -
Цена: 0.00р.
В корзину шт.
559864 Carry All -  --
Номер в каталоге: 559864
Описание: Carry All -
Цена: 0.00р.
В корзину шт.
559865 Grappler -  --
Номер в каталоге: 559865
Описание: Grappler -
Цена: 0.00р.
В корзину шт.
559866 Optional Bucket Teeth -  24 287.73р
Номер в каталоге: 559866
Описание: Optional Bucket Teeth -
Цена: 24 287.73р.
В корзину шт.
559904 Universal Mount Kit (warehouse shipped) --
Номер в каталоге: 559904
Описание: Universal Mount Kit (warehouse shipped)
Цена: 0.00р.
В корзину шт.
559906 Bucket Attachment -  --
Номер в каталоге: 559906
Описание: Bucket Attachment -
Цена: 0.00р.
В корзину шт.
559907 Pallet Attachment -  --
Номер в каталоге: 559907
Описание: Pallet Attachment -
Цена: 0.00р.
В корзину шт.
559908 Manual Lift -  --
Номер в каталоге: 559908
Описание: Manual Lift -
Цена: 0.00р.
В корзину шт.
559916 Bombardier Traxter A-Arm Mount - Requires mounts to be used in conjunction with P/N 55-9950 -  --
Номер в каталоге: 559916
Описание: Bombardier Traxter A-Arm Mount - Requires mounts to be used in conjunction with P/N 55-9950 -
Цена: 0.00р.
В корзину шт.
559917 Bombardier Outlander & Suzuki King Quad A-Arm Mount - Requires mounts to be used in conjunction with P/N 55-9950 -  --
Номер в каталоге: 559917
Описание: Bombardier Outlander & Suzuki King Quad A-Arm Mount - Requires mounts to be used in conjunction with P/N 55-9950 -
Цена: 0.00р.
В корзину шт.
559918 Any Bombardier Max Unit w/extended wheel base - Requires mounts to be used in conjunction with P/N 55-9950 -  24 292.12р
Номер в каталоге: 559918
Описание: Any Bombardier Max Unit w/extended wheel base - Requires mounts to be used in conjunction with P/N 55-9950 -
Цена: 24 292.12р.
В корзину шт.
559919 Plow Blade Markers -  --
Номер в каталоге: 559919
Описание: Plow Blade Markers -
Цена: 0.00р.
В корзину шт.
559926 50” Work Duty Plow Blade-Rolled Blade  -  149 085.24р
Номер в каталоге: 559926
Описание: 50” Work Duty Plow Blade-Rolled Blade  -
Цена: 149 085.24р.
В корзину шт.
559927 50” Work Duty Plow Blade-Rolled Blade -  --
Номер в каталоге: 559927
Описание: 50” Work Duty Plow Blade-Rolled Blade -
Цена: 0.00р.
В корзину шт.
559950 Universal Mount Kit  -  67 215.45р
Номер в каталоге: 559950
Описание: Universal Mount Kit  -
Цена: 67 215.45р.
В корзину шт.
559952 Universal Dump Bucket  -  157 289.10р
Номер в каталоге: 559952
Описание: Universal Dump Bucket  -
Цена: 157 289.10р.
В корзину шт.
559953 Universal Pallet Lifter (drop-shipped) --
Номер в каталоге: 559953
Описание: Universal Pallet Lifter (drop-shipped)
Цена: 0.00р.
В корзину шт.
559954 ATV Universal Manual Lift  -  --
Номер в каталоге: 559954
Описание: ATV Universal Manual Lift  -
Цена: 0.00р.
В корзину шт.
